3-STAGE SIDEKICK TORQUE REACTION ARMS UNIQUE MOUNTING APPLICATIONS

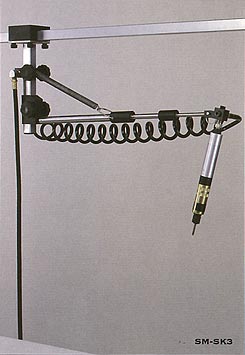

SM-SK3
Shelf Mounted 3-Stage Sidekick for Air Tools
All units include 9” high chrome plated steel post, swivel mounting brackets, mounting screws, coil hose, supply air hose, swivel air manifold, 1/4” x 1/4” and 1/4” x 1/8” NPT steel nipples for air tool hook-up, quick disconnect fittings, quick release pins for instant tool changes, spring balancer and 3-Stage Sidekick Telescoping Torque Reaction Arm.

SM-SK3-E
Shelf Mounted 3-Stage Sidekick for Electric Tools
Includes an electric tool mount and omits all air accessories.

SK-RAM
Right Angle Tool Mount for Sidekicks
Adapts to all sidekicks except the Verti-Trak. The SK-RAM accommodates any right-angle tool up to 2-1/8” in diameter and is easily installed using a quick release pin which is supplied.

MB-SK3-48
MB-SK3-60
MB-SK3-72
Bench Mount Multiple Driver Assembly Frame
Frame superstructure ONLY 48” high, consisting of 2 vertical posts, fixed upper horizontal bar, adjustable lower bar, 2 sets of air fittings. Specify widths of 48”, 60” or 72” by part number. Order SM-SK3 separately as required.

• Fast installation without tools
• Simplifies production changeovers
• Applicable for right or left handed workers
• Order one clamp for each SM-SK3
