TBS-H-38-FL Bench Mount

TBS-L-48-FL

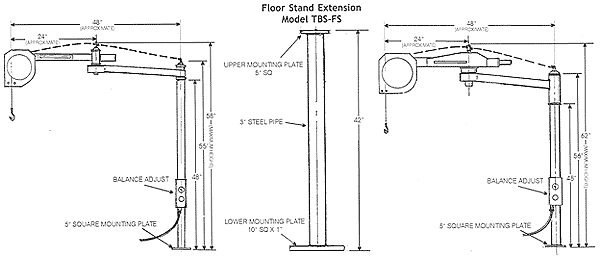

With Floor Stand Extension

Feather Lite Ergonomic Tool Balancing System

  • A zero gravity tool support system-tool remains balanced wherever positioned.
  • Bench or floor mounted stands with built-in pneumatic balancer.
  • Up to 44 lbs. tool capacity.
  • No cable tug.
  • Articulating arm rotates 360° for unsurpassed flexibility
  • Up to 5 ft. of cable travel.
  • No significant air consumption.
Features
  • A Pneumatic Balancing System for heavy tools.
  • Tools are essentially weightless for lifting, lowering and positioning.
  • Tool remains where positioned.

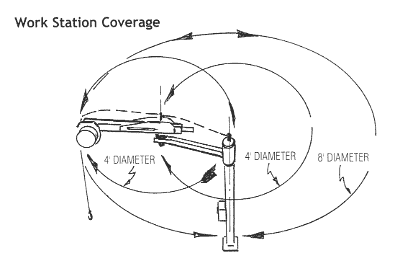

  • 8 ft. diameter work area coverage.
  • Simple balancer adjustment - no tools required.
  • Check valve maintains tool position in the event of sudden air loss.
  • No continuous consumption of compressed air.

    • Feather Lite Standard Duty System

    MODELMAXIMUM TOOL WEIGHT @100 PSIMAXIMUM CABLE TRAVEL
    TBS-L-36FL 14.5 Lbs. 6.5 kg. 36"
    TBS-L-48FL 11.0 Lbs. 5.0 kg. 48"
    TBS-L-6OFL 8.8 Lbs. 4.0 kg. 60"
    		 Applications
    •Grinders •Routers •Impulse Tools
    •Saws •Chippers •Impact Wrenches
    •Scalers •Sanders •Nutrunners
    •Polishers •StapLers

    Feather Lite Heavy Duty System

    MODELMAXIMUM TOOL WEIGHT @100 PSIMAXIMUM CABLE TRAVEL
    TBS-H-24FL44 Lbs. 20 kg. 24"
    TBS-H-36FL 29 Lbs. 13 kg. 36"
    TBS-H-48FL 22 Lbs. 10 kg. 48"
    TBS-H-60FL 17.5 Lbs. 8 kg. 60"
